High Isolation Couplers for B-PON / E-PON

Dense Wavelength Division Multiplexer (DWDM) 100 GHz Spacing, Single ChannelApplications:

  • FTTx
  • B-PON
  • E-PON / Ge-PON
  • G-PON

Features:

  • ITU Recommended Wavelength Grid
  • High Isolation
  • Low Insertion Loss

  • Flat and Wide Passband
  • Low PDL
  • RoHS Compliant (Lead Free)

  • Epoxy-Free Optical Path
  • Exceptionally Stable and Reliable
  • Telcordia GR-1221 UCO Compliant


Description:

Go!Foton’s High Isolation Coupler is ideal for FTTx and B-PON / G-PON applications.  This coupler is based on Go!Foton’s new SELMUXTM patented technology which optimizes glass, epoxy and Filter-on-Lens (FOL) technologies to create integrated couplers with high isolation in a compact size.  Because of this revolutionary technology, Go!Foton’s High Isolation Couplers are one of  the smallest packaging sizes available in the market today.  All SELMUX products have eliminated soldering in the manufacturing process so they are completely lead free and comply with EU directives on Restriction of  Hazardous Substances or RoHS.

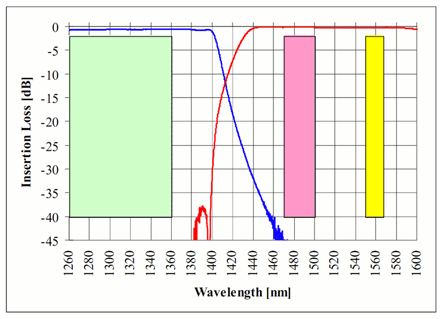

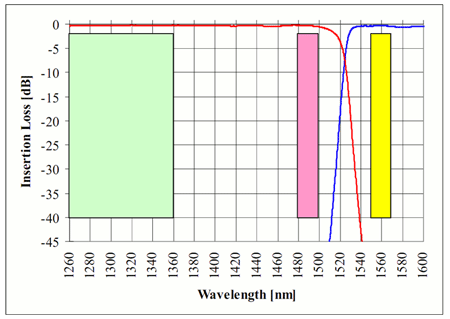

Wavelength Spectrum:

High Isolation Couplers for B-PON / E-PONHigh Isolation Couplers for B-PON / E-PON


Specifications:

Parameters Ports Min Max
Model 1:
Pass Channel Wavelength (λ1 in nm) (1)  => (3) 1550 1560
Reflect Channel Wavelength (λ2 in nm) (1)  => (2) 1260 1360
Reflect Channel Wavelength (λ2 in nm) (1)  => (2) 1480 1500
Model 2:
Pass Channel Wavelength (λ1 in nm) (1)  => (3) 1480 1500
Pass Channel Wavelength (λ1 in nm) (1)  => (3) 1550 1560
Reflect Channel Wavelength (λ2 in nm) (1)  => (2) 1260 1360
Model 1 and Model 2
Insertion Loss          Pass @ λ1 (dB) (1)  => (3)   1.5
                                  Ref @ λ2 (dB) (1)  => (2)   1.5
Isolation                   Pass @ λ2 (dB) (1)  => (3) 40
                                  Ref @ λ1 (dB) (1)  => (2) 40
Ripple                       Pass Channel (dB)     0.5
                                  Ref Channel (dB)     0.5
Directivity (dB)   50
Optical Return Loss (dB)   45
Polarization Dependent Loss (dB)     0.2
Maximum Power Handling (mW)     300
Operating Temperature Range (oC)   0 75
Storage Temperature Range (oC)   -40 85
Fiber Type SMF-28e or Equivalent
Fiber Length (m)



>1.0



Package Size (mm)

(φ)5.5 x (L)40

All specifications are without fiber connectors.


Ordering Information:

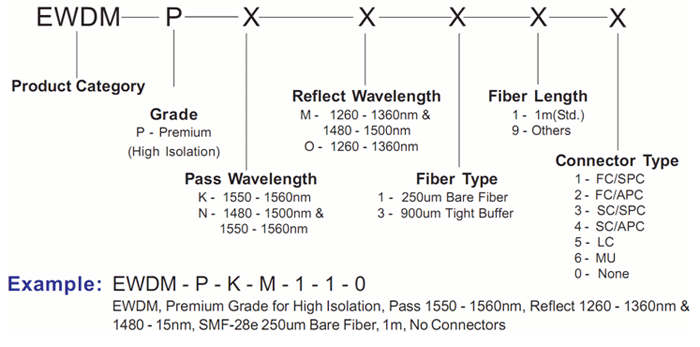

High Isolation Couplers for B-PON / E-PON



PDF data sheet
