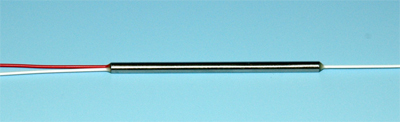

1310 / 1550 nm Fused WDM
 Applications:
-
Telecommunications
-
LAN’s
-
CATV
-
Metro Network
-
Subscriber Loop
Features:
-
High Isolation
-
Low Insertion Loss
-
High Directivity
-
Low Polarization Dependent Loss
-
Epoxy-Free Optical Path
-
Bidirectional
-
Exceptionally Stable and Reliable
-
Telcordia GR-1221 Compliant
Description:
The Go!Foton 1310/1550nm Fused WDM modules are designed for multiplexing and demultiplexing two wavelengths at 1310 and 1550nm. These versatile, mux and demux products are based on Go!Foton’s Fused Biconical Taper Fiber technology. This proven technology produces high quality 3-port devices with low PDL, low insertion loss and stable environment performance.
Dimensions:
Specifications:
| Parameters |
Premium |
Grade A |
| Wavelength Range 1310/1550 (nm) |
|
±20 |
±15 |
±10 |
±20 |
±15 |
±10 |
| Insertion Loss (dB) |
Max |
0.5 |
0.3 |
0.25 |
0.6 |
0.4 |
0.3 |
| Isolation (dB) |
Min |
16 |
17 |
20 |
15 |
16 |
17 |
| Polarization Dependent Loss (dB) |
Max |
0.1 |
0.15 |
| Directivity (dB) |
Min |
60 |
| Temperature Sensitivity (dB) |
Max |
0.15 |
| Operating Temperature (οC)1 |
|
-40 to +85 |
| Storage Temperature (οC)1 |
|
-40 to +85 |
| Package Dimension (mm) |
|
|
|
|
|
|
|
| SMF-28e or Equivalent |
|
(φ) 3.0 x (L) 54 |
| 900 µm Loose Tube |
|
(φ) 3.0 x (L) 65 |
| 2.9mm Cable |
|
(L) 80 x (W) 12 x (H) 7.0 |
| 1 -10οC to 70οC for Loose Tube and Cable Package |

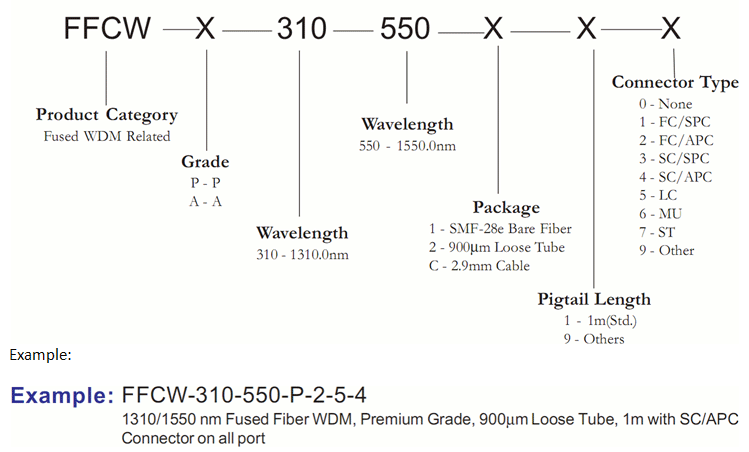

Ordering Information:
 PDF data sheet
|
