Edge Wavelength Division Multiplexer, 1310 / CWDM

Coarse Wavelength Division Multiplexer (CWDM) 1x2 Single ChannelApplications:

  • CWDM System - Mux / DeMux of  1310nm

Features:

  • Telcordia GR-1221 Compliant
  • Low PDL

  • Epoxy-Free Optical Path
  • Exceptionally Stable and Reliable

  • Low Insertion Loss
  • Flat and Wide Passband


Description:

Go!Foton’s Edge WDM 1310/CWDM are designed for multiplexing or demultiplexing of  1310nm and Long-band 8-channel CWDM signals.  These versatile, mux / demux products are Thin-Film-Filter based and are using Go!Foton’s patented SELMUXTM packaging technology.  This proven technology produces high quality 3-port devices with low PDL, low insertion loss and stable environmental performance.  Go!Foton’s Edge WDM 1310 / CWDM products are epoxy-free in the optical path and are in compliance with RoHS 6/6.

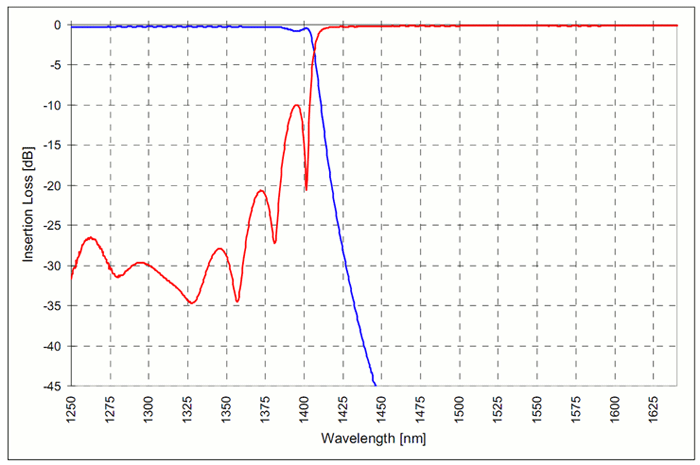

Wavelength Spectrum:


Specifications:

Parameters

Port

Specification

Operating Wavelength (nm)

Com

1260 ~ 1360





1460 ~ 1620

Type 1 (Short Wavelength Pass)





    Pass Channel Wavelength λ1 (nm)

Com => P3

1260 ~ 1360

    Reflect Channel Wavelength λ2 (nm)

Com => P2

1460 ~ 1620

Type 2 (Long Wavelength Pass)





    Pass Channel Wavelength λ1 (nm)

Com => P3

1460 ~ 1620

    Reflect Channel Wavelength λ2 (nm)

Com => P2

1260 ~ 1360

Insertion Loss               Pass @ λ1 (dB)

Com => P3

<1.0

                                         Reflect @ λ2 (dB)

Com => P2

<1.0

Wavelength Ripple       Pass @ λ1 (dB)

Com => P3

<0.5

                                         Reflect @ λ2 (dB)

Com => P2

<0.5

Polarization Dependent Loss (dB)

-

<0.2

Isolation                          Pass @λ2 (dB)

 Com => P3

>40

                                          Reflect @ λ1 (dB)

Com => P2

>20

Directivity (dB)

P2 <= => P3

<50

Return Loss (dB)

All

>45

Optical Power Handling (mW)

-

<300

Operating Temperature Range (oC)

-

0  to +70

Storage Temperature Range (oC)

-

-40  to +85

Fiber Type

All

 SMF-28e or equivalent

Package Size (mm)

-

 250μm or 900μm  (φ)5.5 x (L)40



-

3mm Cable: (L)80 x (W)12 x (H)7

All specifications are without fiber connectors

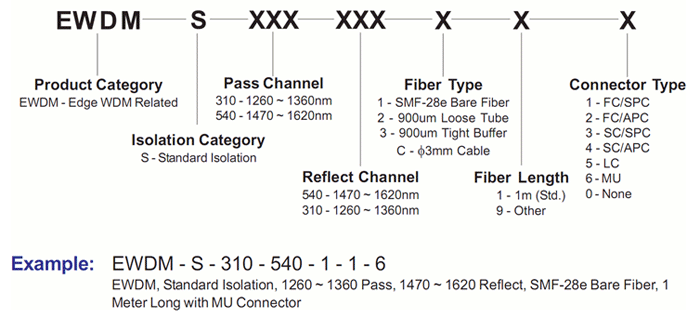

Ordering Information:
