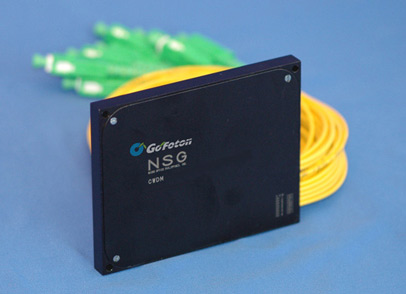

CWDM 'OADM' Add/Drop Multiplexer 2x2 (1 Ch), 3x3 (2 Ch), 4x4 (3 Ch), 5x5 (4 Ch)
Applications:
- CWDM Systems
- Metro/Access Networks
- Enterprise Networks
- CATV Fiber Optic Links
Features:
- RoHS 6/6 Compliant
- Multi-Channel Add / Drop
- Telcordia GR-1221 Compliant
- Thin-Film-Filter(TFF) Based
- Flat and Wide Passband
- Low Insertion Loss
- High Channel Isolation
- Exceptionally Stable and Reliable
- Low Polarization Dependent Loss
- Epoxy-Free Optical Path
Description:
Based on Go!Foton’s patented technology, SELMUXTM series is introduced to cover all TFF-based components using an all-glass platform for improved performance, such as lower insertion loss and higher thermal stability, with a competitive cost structure. Because of it’s high thermal stability, SELMUX series can offer compliance to Outside Plant (OSP) requirement upon request.
Go!Foton’s Coarse Wavelength Division Multiplexing (CWDM) OADMs are based on its unique TFF SELMUX technology that provides a high quality CWDM device with high channel isolation, low polarization dependent loss, flat and wide passband, and stable environmental performance. Go!Foton’s TFF SELMUX products are epoxy-free in the optical path and are in compliance with RoHS 6/6.
Specifications:
| |
1 Ch. OADM |
2 Ch. OADM |
3 Ch. OADM |
4 Ch. OADM |
| Port Configuration |
2x2 |
3x3 |
4x4 |
5x5 |
| Operating Wavelength Range (nm) |
1460 ~ 1620 |
| Center Wavelength (nm) |
1471.0, 1491.0, 1511.0, 1531.0, 1551.0, 1571.0, 1591.0, 1611.0 |
| Add/Drop Channel Max. Insertion Loss (dB) |
<0.9 |
<1.5 |
<1.9 |
<2.3 |
| Express Channel Insertion Loss (dB) |
<0.9 |
<1.8 |
<2.4 |
<3.2 |
| Add/Drop Channel Ripple (dB) |
<0.5 |
| Drop Channel Isolation (dB) |
|
| Adjacent Ch. |
>30 |
| Non-Adjacent Ch. |
>45 |
| Add Channel Isolation (dB) |
|
| Adjacent Ch. |
>15 |
| Non-Adjacent Ch. |
>30 |
| Express Channel Isolation (dB) |
>24 |
| Polarization Dependent Loss (dB) |
<0.2 |
| Optical Return Loss (dB) |
>45 |
| Directivity (dB) |
>55 |
| Optical Power Handling (mW) |
<500 |
| Operating Temperature Range (oC) |
0 to 70 |
| Storage Temperature Range (oC) |
-40 to 85 |
| Fiber Type |
SMF-28e or Equivalent |
| Fiber Length (m) |
> 1.0 |
| Package Size (mm) |
Standard: (L)95 x (W)75 x (H)8 |
| All specifications are without fiber connectors. |
| * Center Wavelength in Shortband (1270, 1290, 1310... or 1271, 1291, 1311..) are available upon request. |
| * LGX Box / 19’ Rack Packaging option is available upon request. |

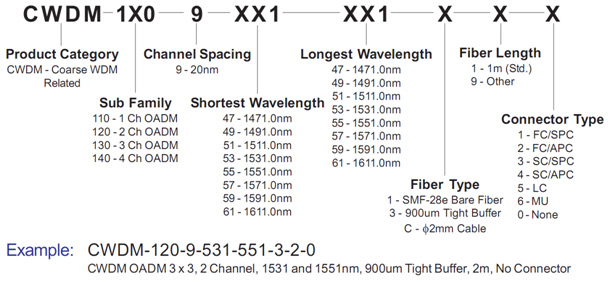

Ordering Information:
