Compact Wideband Fused Fiber Splitter 1x4, 1x8, 1x16, 1x32
Applications:
-
FTTx / Fiber Distribution.
-
B-PON / E-PON
-
Ge-PON / G-PON
Features:
-
Exceptionally Small Package Size
-
Wide Operating Temperature Range
-
Low Insertion Loss
-
Low PDL
-
Wide Operating Wavelength Range
Description:

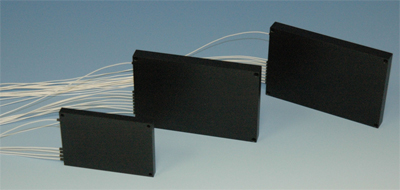

Go!Foton’s Compact Wideband Splitters (FFCS-C) are based on NSG’s Fused Biconial Taper Fiber Technology and our progressive Fiber Management Processes. These advanced and accurate splitters can be used to split or combine light signals from one fiber to multiple fibers. Ideal for FTTx (B-PON, E-PON, Ge-PON) and CATV systems, these splitters provide low insertion loss with very high reliability.
Specifications:
Port Configuration |
1 x 4 |
1 x 8 |
|
1 x 16 |
1 x 32 |
Operating Wavelength (nm) |
1260 ~ 1360 and 1480 ~ 1580 |
Insertion Loss (dB) |
<7.2 |
<10.5 |
|
<14.5 |
<18.5 |
Uniformity (dB) |
<1.0 |
<1.5 |
|
<1.8 |
<2.4 |
Polarization Dependent Loss (dB) |
<0.3 |
<0.4 |
|
<0.5 |
<0.7 |
Directivity (dB) |
|
|
>55 |
|
|
Return Loss (dB) |
|
|
>55 |
|
|
Operating Temperature (oC) |
|
|
-40 to +85 |
|
|
Storage Temperature (oC) |
|
|
-40 to +85 |
|
|
Fiber Type |
|
SMF-28e or Equivalent |
|
Fiber Length (m) |
|
|
>1 |
|
|
Package Dimensions (mm) |
|
72 x 54 x 5.4(1x4 & 1x8) |
* See Note |
|
|
72 x 54 x 6.6 (1x16) |
|
All specifications are without fiber connectors. |
* 1x32 package uses two cascaded 1x16 splitters. |
* Simplified Ribbonized Fiber is available upon request. |

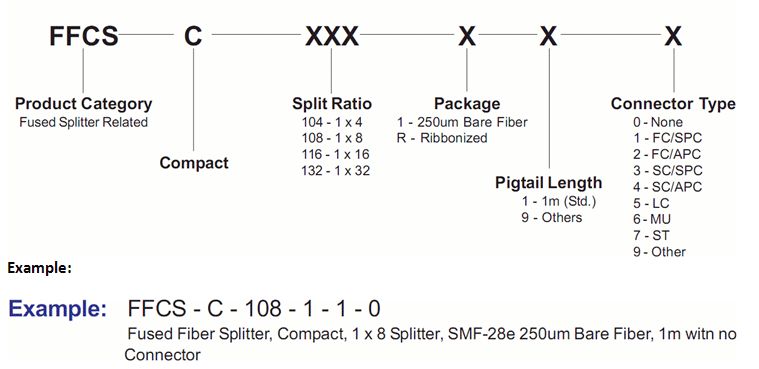

Ordering Information:
